Which is better Venturimeter or orifice meter?

Higher flow rates in high quality orifice plates gives increased accuracy. Venturimeters are widely used for high flow rates. They can handle 25-50% more flow rate than an orifice. Orifice plates are smaller in size when compared to venturimeters.

What is the difference between Venturimeter and nozzle meter?

Venturi Meters are Measurement Devices. Their primary objective is to measure flow volumes by measuring Pressure Differences in a specially defined profile. Nozzles are devices designed for the most efficient conversion of fluid Pressures to fluid Flow. The two are not interchangeable.

Why should I prefer Venturimeter over an Orificemeter?

1. A venturi meter can be used to measure the flow rates of all incompressible fluids (gases with low pressure variations, as wells as liquids), whereas an orifice meter is generally used for measuring the accelerated flow through the apparatus. 2.

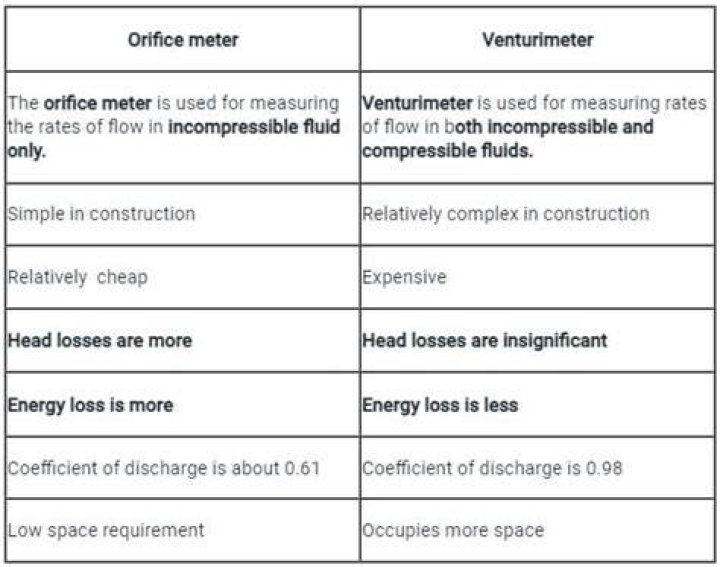

What is venturi meter and orifice meter?

Venturi Meter versus Orifice Meter:- Venturi meters and Orifice meters are devices which are used to measure average velocity, volumetric flow rate or mass flow rate of a flowing fluid by reducing the pressure of the flowing fluid.

Ultrasonic Flow Meter Explained | Working Principles

What is the use of Orificemeter?

The simplest and most common device for measuring flow rate in a pipe is an orifice meter. An orifice meter is a device with a hole in it, which measures how fast a fluid is flowing, by recording the pressure decrease across the hole.

What is difference between orifice and orifice meter?

In the matter of design, orifice for flow meter always designed to flow in a subsonic velocity in order to ensure the accuracy of flow measurement, while the restriction orifice always designed to flow in the sonic velocity to ensure choked flow. Indeed RO main function is to limit the flow (flow-limiting).

What are the advantages and disadvantages of Orificemeter?

Advantages and disadvantages of orifice plate

• Simple in construction, the standards for construction and calibration are readily available.
• They are cheap; their price does not increase dramatically with size.
• Easy to install and remove.
• They are efficient and reliable for many years.
• Available in many materials.

Why orifice plate is used?

An orifice plate is a device used for measuring flow rate, for reducing pressure or for restricting flow (in the latter two cases it is often called a restriction plate ).

What is the difference between Venturimeter and pitot tube?

The reason is that there is no stagnation point in a venturi meter, whereas there is one in a pitot meter. Both rely upon Bernoulli's equation, but use different terms. The venturi meter takes advantage of a constriction to change the speed of fluid flow, thus changing the dynamic pressure.

What is the difference between orifice and mouthpiece?

An orifice is an opening made in the side or bottom of tank, having a closed perimeter, through which the fluid may be discharged. A mouthpiece is short tube fitted to a same size circular opening provided in a tank so that fluid may be discharged through it.

What is the difference between open channel flow and pipe flow?

Pipe flow Vs Open channel Flow

Open Channel Flow is a type of fluid flow in a conduit with a free surface open to the atmosphere. The pipe flow is a type of flow within a closed conduit. The maximum velocity occurs at the center of the pipe. HGL(Hydraulic Gradient Line ) coincides with the water surface line.

Why bevel is used in orifice plate?

A beveled orifice should form an angle of::

The orifice plate inserted in the line causes an increase in flow velocity and a corresponding decrease in pressure. The flow pattern shows an effective decrease in the cross section beyond the orifice plate, with a maximum velocity and minimum pressure at the vena contracta.

How many types of orifice plates are there?

There are mainly three types of orifice plates available. Let s take a close look at these three types. Concentric These are most commonly used in pipes below six inches for measuring flow rate of gases, liquids, and steams.

Are orifice plates directional?

Bevelled orifice plates are obviously uni-directional, and must be installed with the paddle text facing upstream while the bevelled end faces downstream. These are generally used when the process material contains foreign matter that may block the orifice in the case of a concentric configuration.

How Orificemeter are used for flow measuring?

It works on the Differential Pressure Measurement principle. The liquid or gas whose flow rate is to be determined is passed through the orifice plate. This creates a pressure drop across the orifice plate which varies with the flow rate, resulting in a differential pressure between the outlet and inlet segments.

What are the advantages of Venturi meter?

Advantages

• High-pressure recovery. Low permanent pressure drop.
• High coefficient of discharge.
• Smooth construction and low cone angle help to solid particles flow through it. ...
• It can be installed in any direction horizontal, vertical and inclined.
• More accurate than orifice and flow nozzle.

What are different types of orifice?

Types of Orifice Plates

• Square Edge (Standard) Bore. For the common square edge concentric bore orifice, the bore and bevel is the standard method of limiting the plate edge thickness. ...
• Quadrant Edge Bore. The quadrant edge bore is an orifice with the inlet edge rounded. ...
• Eccentric Bore. ...
• Segmental Bore. ...
• General Description.

What is the difference between Weir and notch?

A notch may be defined as an opening provided in the side of tank or vessel such that the liquid surface in tank is below the top edge of opening. A weir may be defined as any regular obstruction in open stream over which the flow takes place. Made of metallic plates.

What is difference between orifice meter and rotameter?

Rotameters. The orifice meter, Venturi tube and flow nozzle work on the principle of constant area variable pressure drop. Here the area of obstruction is constant, and the pressure drop changes with flow rate. On the other hand Rotameter works as a constant pressure drop variable area meter.

Does a Venturi increase pressure?

A Venturi is a system for speeding the flow of the fluid, by constricting it in a cone shape tube. In the restriction the fluid must increase its velocity reducing its pressure and producing a partial vacuum. As the fluid leave the constriction, its pressure increase back to the ambient or pipe level.

What is Vena Contracta in orifice meter?

Vena contracta is the point in a fluid stream where the diameter of the stream is the least, and fluid velocity is at its maximum, such as in the case of a stream issuing out of a nozzle (orifice).

What is the beta ratio for an orifice plate?

Standard orifice plates are sized to a beta ratios from 0.1 to 0.75 (beta ratio = d/D, where “d” is the bore size and “D” is the internal diameter of the pipe/meter tube).

What is flow nozzle?

The flow nozzles is a flow tube consisting of a smooth convergent section leading to a cylindrical throat area. The throat is the smallest section of the nozzle. Pressure taps are located on the upstream side of the nozzle plate and on the downstream side of the nozzle outlet.

What is difference between open and closed channel?

However the major difference is that the flow in closed conduit is influenced by pressure in the line whereas same in open channel it only by gravity. And in case of closed conduit fluid does not come in contact with atmosphere, whereas in open channel it is in touch with atmosphere.
