What is eddy current and its application?

Eddy currents are sometimes so strong, that metallic plate become red hot. Application:- (1)-In induction furnace, the metal to be heated is placed in rapidly varying magnetic field produced by high frequency alternating current. Strong eddy currents are set up in the metal produce so much heat that the metal melts.

What is eddy current in simple words?

Definition of eddy current

: an electric current induced by an alternating magnetic field.

What is eddy current and how it is produced?

Eddy currents: When a thick metallic piece is place in a time varying magnetic field , the magnetic flux linked with the plate changes, the induced currents are set up in the conductor, these currents are called eddy currents. These currents are sometimes so strong, that the metallic plate becomes red hot.

What is eddy current examples?

Popular equipment such as stationary exercise bikes are a great example of eddy currents in action. Programming the bike to simulate an uphill climb increases the drag between the non-magnetic conductor and the permanent magnet in the bike making it more difficult to keep peddling.

What is Eddy Current? Equation, Formula, Experiment, Effects

What is eddy current formula?

Next, the eddy current flowing in each ring is obtained by solving a complex matrix equation of the form [X] [I] = [V] where X is the impedance matrix, I is the eddy current matrix, and V is the induced voltage matrix.

What is eddy current class 12th?

Eddy currents are induced currents in the body of conductor when subjected to changing magnetic flux. They are also known as Foucault current after the name of the scientist Foucault. They are known as eddy currents as they are in the pattern of eddiesin the water.

What is an eddy current water?

An eddy is a circular current of water.

The ocean is a huge body of water that is constantly in motion. General patterns of ocean flow are called currents. Sometimes theses currents can pinch off sections and create circular currents of water called an eddy.

What is eddy current losses?

If an eddy current of magnitude I flows through a core path of resistance r, it will dissipate energy in the form of heat according to the power equation power = I2R. Since this represents energy being expended for no useful purpose, it is considered as an eddy current loss, sometimes called iron loss.

What are eddy currents explain their advantages and disadvantages?

Eddy current converts the kinetic energy into heat and this is applied in many useful applications like Magnetic Braking in trains, Electromagnetic damping, Induction furnace etc.In this process, there is a loss occur in this system to reduce this we need to increase the core resistance and there is more losses in eddy ...

Are eddy currents useful or harmful?

Solution : They are both, useful and harmful.

What causes eddy currents?

Causes of Eddy Currents

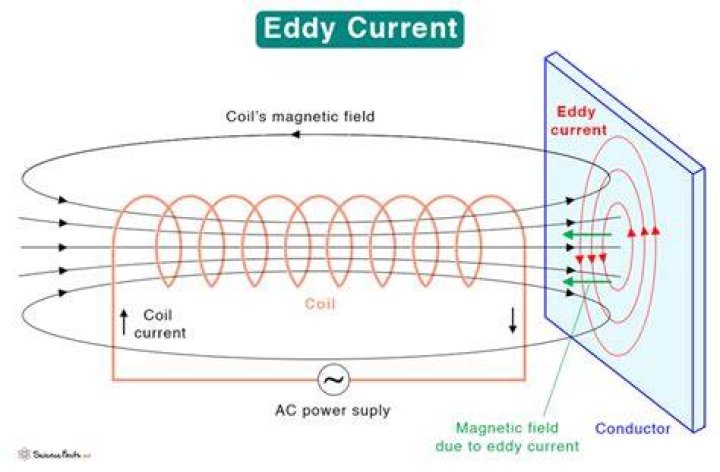

When a conductor travels through a magnetic field or when the magnetic field around a stationary conductor changes, eddy currents are produced. Eddy currents can thus be generated anytime the intensity or direction of a magnetic field changes in a conductor.

What is eddy current and hysteresis?

The loss which occurs because of the eddy current is known as the eddy current loss. The eddy current induces because of the interaction of the variable magnetic field and conductor. The loss which occurs because of the reversal of the magnetising force is known as the hysteresis loss.

What is hysteresis law?

Hysteresis occurs in a system that involves a magnetic field. Hysteresis is the common property of ferromagnetic substances. Generally, when the magnetization of ferromagnetic materials lags behind the magnetic field this effect can be described as the hysteresis effect.

Why is river Called eddy?

Eddies. An eddy is an area of swirling water that forms behind an obstacle like a boulder in a river. Often the water in the eddy will reverse the direction of flow and will flow upstream. Eddies are almost always formed on the inside of the corner when a river turns a corner.

Where are eddies found?

Eddies are relatively small, contained pockets of moving water that break off from the main body of a current and travel independently of their parent. They can form in almost any part of a current, but are especially pronounced in western boundary currents.

What is eddies in wind?

When the wind encounters a solid object, a whirl of air (called an eddy) forms off the leeward side of the object. Eddies can form near the surface or aloft, and the size and shape of the eddy depend on the speed of the wind, combined with the size and shape of the object.

What is eddy current Quora?

Eddy currents are currents generated in iron cores of electrical machines due to revolving magnetic fields. These currents are circular currents and if allowed to operate freely in the core,it can cause temperature rise and heat up the core.

What is eddy current in transformer?

Eddy Currents

In a transformer, the magnetic flux created by the primary coil induces a current in the core. This occurs in order to oppose the charge that produced the magnetic flux (Lenz's Law). The currents flowing in the core are called eddy currents.

What is frequency in eddy current?

The supply frequency usually used for the eddy current heating ranges from 10 kHz to 40 kHz.

How can we reduce eddy current?

Eddy current magnitude can be reduced by designing the core as a set of thin sheets or laminations, in parallel to the magnetic field. Each sheet must be insulated from its neighbours with a thin coating of varnish or oxide film. By laminating the core, the area of each section and hence the induced EMF is reduced.

What is the effect of eddy current in induction motor?

As eddy currents flow through the conductor, heat is generated, referred to as Joule heating. The amount of Joule heating is proportional to the square of the current, so even a small reduction in eddy currents can have a significant effect on the amount of heat produced.

How do eddy currents heat metal?

Meaning of Eddy Current Heating:

Power loss due to eddy currents is eddy current loss and appears in the form of heat. The metal to be heated is placed within a high frequency current carrying coil. By doing so alternating magnetic field is set up, eddy currents are induced in the metal piece and heating is affected.

What is the effect of eddy current in the Aluminium disc?

What is the effect of eddy currents in the aluminium disc? Explanation: The eddy currents induced in an aluminium disc vary in proportion to the speed of the disc. As a result the braking torque exerted on the disc varies in proportion to the speed. 9.
