What is yoke and limb in transformer?

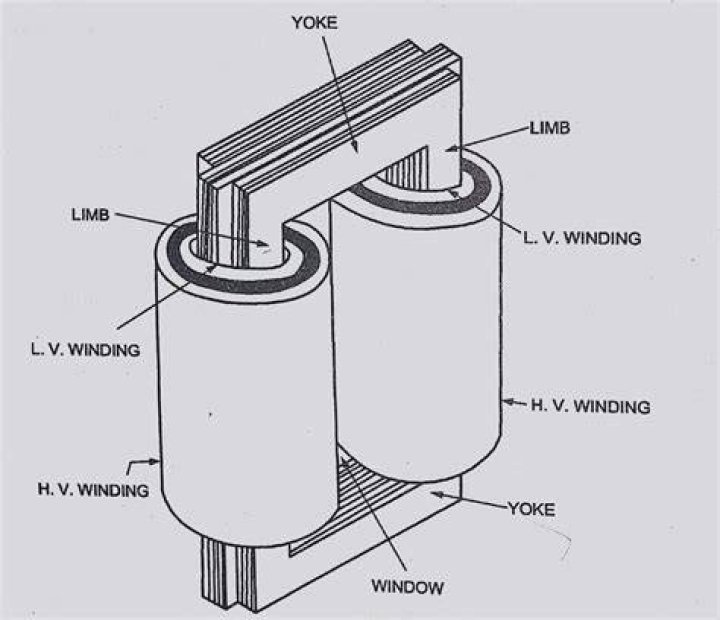

The vertical part of the magnetic circuit is called the Limb over which winding is wound. The horizontal portion is called the Yoke. As can be seen in the above figure, the transformer winding is surrounding the magnetic core. In core type transformer, winding is wound on both the limbs.

What is the name of transformer parts?

There are three basic parts of a transformer: an iron core which serves as a magnetic conductor, a primary winding or coil of wire and. a secondary winding or coil of wire.

How many limbs does a transformer have?

The transformer has three limbs. Each phase winding is wound around one of the limbs. Each limb has two windings: primary and secondary. On each limb, the low voltage winding is placed nearer to the steel core and the high voltage winding is placed over the low voltage winding.

What are the two parts of a transformer?

The principal parts of a transformer are two coils of wire, called the primary winding and the secondary winding, wound on some type of core material. An enclosure protects the internal components from dirt, moisture, and mechanical damage. Figure 3-1 shows a schematic diagram of a simple transformer.

Transformer Neural Networks - EXPLAINED! (Attention is all you need)

Why bushing is used in transformer?

A transformer bushing is an insulating structure that facilitates the passage of an energized, current-carrying conductor through the grounded tank of the transformer.

What is transformer and its parts?

A transformer is made of several different parts that function in their own different ways to enhance the overall functioning of a transformer. These include core, windings, insulating materials, transformer oil, tap changer, conservator, breather, cooling tubes, Buchholz Relay and explosion vent.

How many limbs are in shell type transformer?

The core of a single phase shell type transformer is constructed with of three limbs (legs). This design increases the mechanical strength of the core. It also improves the protection of windings from external mechanical shocks. The HV and LV windings are wound around the central limb.

What is a 5 limb voltage transformer?

5 limbed transformer core offers low impedance to the flow of unbalanced load between the line and neutral (Zero sequence component of current). This is because the flux finds its path from 4th and 5th limb. So, tertiary winding will not be needed in a star connected transformer operating in a unbalanced load.

What is a transformer core?

A transformer core is a static device that transmits power from one source to another through electromagnetic induction. These are pieces of magnetic material with a high magnetic permeability, which is used to guide magnetic fields in transformers.

What is inside of transformer?

Distribution transformers consist of a magnetic core made from laminations of sheet silicon steel (transformer steel) stacked and either glued together with resin or banded together with steel straps, with the primary and secondary wire windings wrapped around them.

What is a breather in transformer?

A breather is an accessory of liquid-immersed power transformers attached to the conservator tank. They serve as the breathing point of the transformer. The breather contains silica gel crystals which have a tremendous capacity of absorbing moisture.

What is the use of yoke in transformer?

The Functions of Yoke are: It provide mechanically support to the poles. It serves the purpose of outer most cover of the motor. It provide a path of low reluctance for flux.

What is a wound core?

A typical wound core, Fig. 1, consists of hundreds of steel sheets of grain-oriented steel. Wound cores are mainly used in the construction of distribution transformers with rated apparent power that ranges from 25 kVA to 2500 kVA.

What is the difference between yoke and core of transformer?

The parts of the core joining the three limbs are known as the yokes. In the three-limb arrangement the yokes have the same cross-sectional area as the limbs. With two extra unwound limbs the top and bottom yokes can be reduced to half the cross-section of the three wound limbs.

What is core and shell type?

The main difference between Core type and Shell Type Transformer is the constructional difference of their core and winding arrangement. In core type transformer, the magnetic core consists of two limbs and two yokes whereas in Shell type transformer, there are three limbs and two yokes.

What is difference between core and winding?

In core type transformers, winding is positioned on two limbs of the core and there is ONLY one flux path and windings are circumventing the core.

What is flux in transformer?

In a transformer, the magnetic flux created by the primary coil induces a current in the core. This occurs in order to oppose the charge that produced the magnetic flux (Lenz's Law). The currents flowing in the core are called eddy currents. These currents produce heat, using up energy and so causing inefficiency.

What is a transformer symbol?

While the schematic symbol of a transformer may look like two coils (called windings) placed next to each other, the magnetic coupling and orientation between these two coils is also indicated within its schematic symbol.

What is a transformer core made of?

Most transformer cores are constructed from low carbon steels which can have a permeability in the order of 1500 compared with just 1.0 for air. This means that a steel laminated core can carry a magnetic flux 1500 times better than that of air.

What are bushings?

Definition of bushing

1 : a usually removable cylindrical lining for an opening (as of a mechanical part) used to limit the size of the opening, resist abrasion, or serve as a guide. 2 : an electrically insulating lining for a hole to protect a through conductor.

What is the function of bushing?

Bushings are akin to thin tubes most commonly used for machinery with rotating or sliding shafts to improve efficiency and reduce vibration and noise. Bushings can be used for drilling operations in drill jigs, hydraulic external gear pumps and motors.

What is difference between bushing and bearing?

Bushing is a cylindrical-shaped machine component, an independent plain bearing that is used to support a shaft. It is technically identical to a bearing except it's a single independent one-part device whereas bearing is mostly made of two or more components.
