How does a Hall effect switch work?

A Hall effect switch turns on in the presence of a magnetic field and turns off when the magnet is removed. A Hall effect latch turns on (closes) when a positive magnetic field is applied and remains on even when the magnet is removed.

What triggers a Hall effect device?

When the device is placed near an external magnet, the magnetic flux exerts a force on the semiconductor material. This force causes a movement of electrons, creating a measurable Hall voltage and activating the Hall effect sensor.

Is Hall effect AC or DC?

Hall Effect devices are made for DC, not AC as such. Devices manufactured for single polarity produce a center voltage of 2.5 volts (assuming a 5-volt unit) with no magnetic field. Using an AC magnetic field simply produces about a 4-volt peak-to-peak sine wave (at maximum current) centered at 2.5 volts.

What is Hall effect in simple words?

The Hall effect is the movement of charge carriers through a conductor towards a magnetic attraction. The phenomenon is named for Edwin Hall, who discovered the effect in 1879.

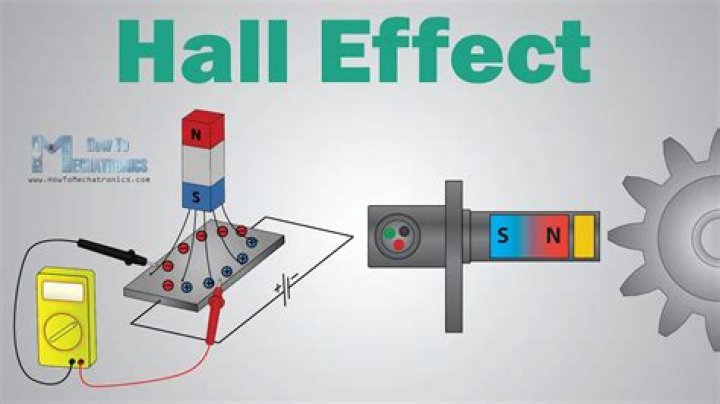

What is Hall Effect and How Hall Effect Sensors Work

How is Hall voltage produced?

Moving electrons feel a magnetic force toward one side of the conductor, leaving a net positive charge on the other side. This separation of charge creates a voltage ε, known as the Hall emf, across the conductor.

How accurate are Hall effect sensors?

Regarding accuracy, currently available Hall effect sensors can achieve output error as low as 1%. A well-designed resistive current-sense circuit could surpass this, but 1% would generally be adequate in the high-current/high-voltage applications for which Hall effect devices are particularly suitable.

How do Hall effect sensors fail?

The Hall sensor is designed to flow 20 milliamps or less. The resistor is located in the signal circuit so it can limit the current flowing through that circuit. If this resistor drops its resistance, the current flow would increase, creating multiple Hall sensor failures.

Can a Hall effect sensor detect metal?

Hall effect sensors have the advantage of being ultrasmall. They are usually very effective for detection of strongly magnetic metals (like iron) in close proximity (a few milimeters).

How does Hall effect produce Hall voltage?

Moving electrons feel a magnetic force toward one side of the conductor, leaving a net positive charge on the other side. This separation of charge creates a voltage ε, known as the Hall emf, across the conductor.

Can Hall effect be observed in conductors?

In most conductors, such as metals, the Hall effect is very small because the density of conduction in electrons is very large and the drift speed (charged particle erraticism) is extremely small, even for the highest obtainable current densities.

What is the difference between Hall voltage and normal voltage?

Hall potential or voltage: If a magnetic field is applied perpendicular to the flow of current, then a potential or voltage is created normal to both that current and the magnetic field. This effect is called the Hall effect and the generated potential or voltage is called Hall potential or Hall voltage.

Why do we need Hall sensor?

Hall sensors are commonly used to time the speed of wheels and shafts, such as for internal combustion engine ignition timing, tachometers and anti-lock braking systems. They are used in brushless DC electric motors to detect the position of the permanent magnet.

Is a Hall effect sensor active or passive?

Hall Effect Sensors are devices which are activated by an external magnetic field. We know that a magnetic field has two important characteristics flux density, (B) and polarity (North and South Poles). The output signal from a Hall effect sensor is the function of magnetic field density around the device.

Is a Hall effect sensor digital or analog?

Types of Hall Effect Sensors

Hall Effect sensors are broadly divided into two categories: analog and digital. The analog sensors produce a continuously varying voltage output while the digital version has just two output voltages: high or low.

Is Hall voltage positive or negative?

These charges are also deflected upward by the magnetic field. Thus, the upper edge of the ribbon becomes negatively charged, whilst the lower edge becomes positively charged. It follows that the Hall voltage (i.e., the potential difference between the upper and lower edges of the ribbon) is negative in this case.

Why is semiconductor used in Hall effect?

When a magnetic field is applied perpendicular to the direction of flow of charge carriers, in a semiconductor material, charge carriers experience a force in transverse to the direction of applied magnetic field and carriers flow. This effect is known as Hall effect.

Why is electric field in Hall effect?

The Hall effect is when a magnetic field is applied at right angles to the current flow in a thin film where an electric field is generated, which is mutually perpendicular to the current and the magnetic field and which is directly proportional to the product of the current density and the magnetic induction.

How does Hall voltage produced in metals?

In open-circuit conditions, as negative charge builds up, electrons with higher energy can cross the barrier. Electrons must acquire a substantial velocity for a large Hall voltage to appear on the edges of the metal.

Can Hall effect sensor detect aluminum?

A Hall device in conjunction with a magnet can be used to detect materials like iron, steel, and nickel. Other metals such as copper and aluminum can be detected if there is sufficient current passing through them in the region of the Hall sensor.

What is a Hall sensor on a phone?

Such sensors detect the proximity of a magnet embedded in the cover or case for the device, in order to automatically turn the screen off when the cover is closed.

How many types of Hall sensors are there?

There are two types of Hall effect sensors: Devices with linear (or analogue) outputs, and those that have digital outputs. Analogue sensors use a continuous voltage output that increases within a strong magnetic field and decreases in a weaker field.

How does a hall effect throttle work?

In simple terms, when you connect a hall effect throttle to a 5 volt source, the sensor will detect the proximity of the magnet to the sensor itself. When the magnet is far away from the sensor, the output reading is 0 volts. As the magnet slowly gets closer to the sensor, the voltage gradually climbs higher.
