What is the most common mistake made when installing joist hangers?

Never use deck screws or drywall screws to install joist hangers. Dont reuse joist hangers. Dont modify them by cutting them shorter. A joist or a truss must lie fully on the bearing.

Is it OK to use screws on joist hangers?

While structural nails are typically used to fasten joist hangers, you may be wondering if screws can be used instead. You can use screws explicitly made for joist hangers. However, avoid using any other types of screws as they cannot support joist loads and are not designed to withstand shear force.

Do you use joist hangers on both ends?

Joist hangers are preferable to both toe-nailing and end-nailing. Joist hangers provide greater shear force support to joists, as the hanger allows for both face nailing and toe-nailing into ledger boards and rim joists.

Is toe nailing acceptable?

Toe-Nails Instead of Joist Hangers are OK for Framing Lumber Butt-Joint Connections, but Don't Over-Nail and Don't Under-Nail. It is not necessary to use steel joist hangers if the joist is properly toe-nailed from either side into the ledger board, provided that the proper size and number of nails are used.

How To Properly Install Joist Hangers || Dr Decks

Can I use deck screws for joist hangers?

So, what size screws for decking? The manufacturers agree: Never use galvanized deck screws or drywall screws to install joist hangers. Those screws don't have the shank size and toughness to support joist loads.

Can I use 2x6 joist hangers for 2x8?

Usually, the hanger size is the same as the joist size, but you can use a hanger that is one dimensional size less than the joist depth—a 2x6 hanger can be used with a 2x8 joist, for instance. Keep in mind that the load capacity of the smaller hanger needs to be adequate to support the load on the joist.

What screws are approved for joist hangers?

In general, connector manufacturers recommend 16d and 10d framing nails for anchoring joist hangers to headers or walls and shorter nails, called joist hanger nails, for anchoring the joists to the joist hangers.

Why do framers use nails instead of screws?

Nails are often preferred for structural joining, including framing walls, because they are more flexible under pressure, whereas screws can snap.

Do I need blocking between I-joists?

Blocking panels are required at each end of floor joists not otherwise restrained from overturning by a band joist or rim board. Blocking panels are required between floor joists supporting load-bearing walls running perpendicular to the joists.

Are 2x6 strong enough for deck joists?

You can use 2×6 as deck joists if the deck is low enough to the ground as not to require guard railing. When using S-P-F 2×6 deck joists, the span must not be greater than 9'0″ (2.73m) with joists at 16″ o.c. (400mm), and 9'10” (3.01m)with spacing at 12″ (300mm).

Do joists go on top of beams?

You typically need to hang a joist if the top of it needs to be in the same plane as the beam that supports it. There are all sorts of reasons and conditions on jobs where this is necessary. I happen to have in my garage an example of how carpenters did it 150 years ago.

How far should a nail penetrate?

Rule of Thumb #2 – Use a nail that will penetrate the item you are nailing to (not through) at least 3/4″.

Can I toenail studs?

Toenailing — driving a nail at an angle — is a method often used to fasten wall studs to the sole plate, as illustrated. If you have trouble keeping the stud in position while nailing, lay a 2x4 spacer block behind it. Cut the block to equal the distance between the wall studs, typically 14 ½ or 22 ½ inches.

Do you notch joist hangers?

Where connected to hangers, I-joists should not be notched at the flange, and should have: a minimum bearing of 45mm onto the hanger. the tabs of the hanger bent and nailed to the bottom flange.

Should you use joist tape?

In order to protect your deck's substructure from weathering and moisture, protective tape for your joists is a must.

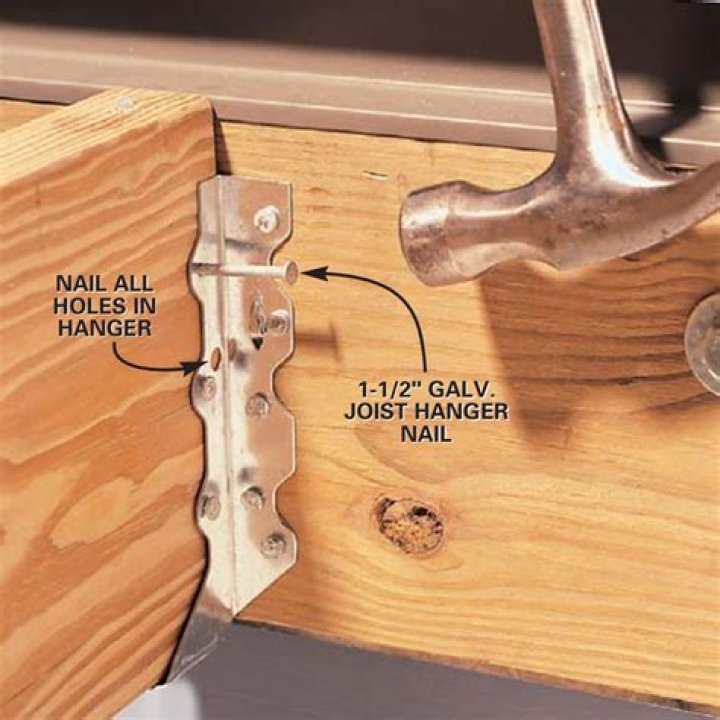

What size nails should I use for joist hangers?

Typically, the least you can use for a single joist hanger is a 10d common. The short joist hanger nails are also 10d nails, and they can be used for single joist hangers. When it comes to double joist hangers and beam hangers, however, you need a full-length 16d common nail.

Can I use joist hangers for floor joists?

Joist hangers not only simplify the framing process but also strengthen the deck or floor you are building. When hanging floor joists, use joist hangers to make building a floor deck simpler. Place hangers every 16 inches on center. Position each hanger using the tab to hold it in place.

Can you use joist hangers for ceiling joists?

There is one place where a ceiling joist can truly “hang.” This is where it meets a beam on top of an interior or “partition” wall. A code-compliant connection includes the use of metal joist hangers, just like those used on outdoor decks.

Can you use 2x6 for floor joist?

2x6s may be used for floor joists, ceiling joists, or rafters and have differing spans for the same grades and species. Loads are divided into live or snow loads and dead load considerations. A plank used for a floor joist commonly has different load factors than a ceiling joist or rafter.
